FW-TEO2-006
Tellurium dioxide (TeO2) crystal with high-quality factor and transparent in the 0.33um to 5um spectral range.
| Chemical formula | TeO2 |
| Density (g/cm2) | 6 |
| Melting Point (C) | 733 |
| Transparent Wavelength (um) | 0.33 – 5.0 |
| Transmittance @632.8nm | >70% |
TeO2 is a kind of acousto-optic material with high quality factor. It has good properties of birefringence and optical rotation with low velocity of propagation along (110) axis. Under the same clear aperture, the acousto-optic device produced by TeO2 crystals has the advantages of orders of magnitude improvement in resolution, fast response speed, small driving power, high diffraction efficiency, as well as stable and reliable performance.
TeO2 crystals are ideal single crystal material used to produce different kinds of acousto-optic device, such as acousto-optic deflector, modulator, resonator and tunable filter.
Main Technical Parameters:
| Chemical equation | TeO2 |
|---|---|
| Chemical equation | TeO2 |
| Density (g/cm2) | 6 |
| Melting Point (C) | 733 |
| Mohs Hardness (Mohs) | 4 |
| Color | Colorless |
| Transparent Wavelength (mm) | 0.33 – 5.0 |
| Transmittance @632.8nm | >70% |
| Refractive Index @632.8nm | n. = 2.411 n. = 2.258 |
| Thermal Conductivity (mw/cm C) | 30 |
| Sound Velocity (km/sec) | 0.617 for shear wave along (110) 4.26 for longtitudinal wave along (001) |
| Acousto-optical quality factor | 1200 for shear wave along (110) 4.26 for longtitudinal wave along (001) |
Applications:
Acousto-optic device – acousto-optic deflector, acousto-optic Q-switched and SAWD.
- Used in lidar
- Scanning of TV
- Large screen’s display
- Optical memory of photon computer
- Laser communication.

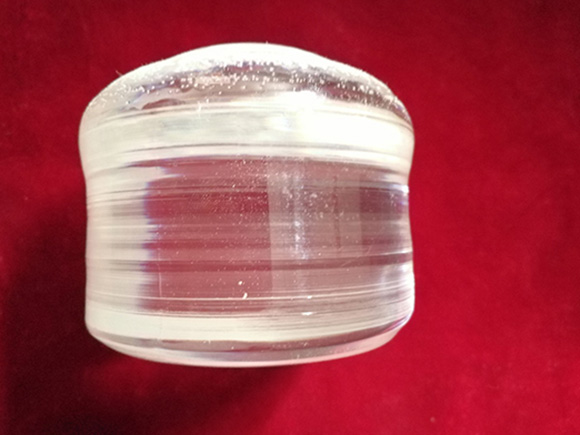

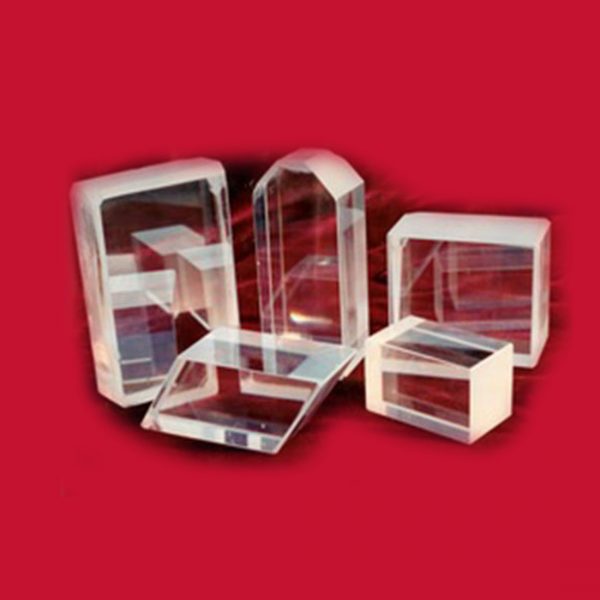

These can be supplied in 2inch, 3inch 4inch TeO2 ingots and all specifications of wafers, bars, and blocks. Contact us for a quote or more information.
