FW-SILW-002
High purity silicon wafers/substrates

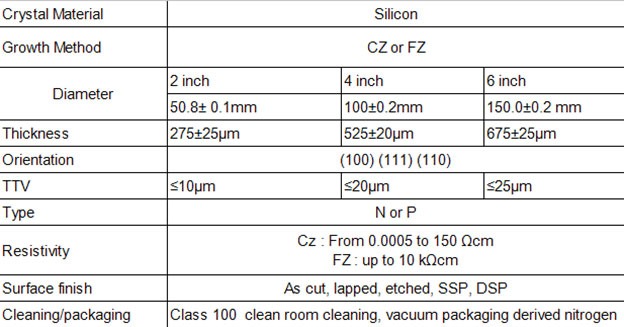

Key Specifications
| Material | Silicon |
| Diameter (inch) | 2, 4, 6 |
| Thickness (um) | 275, 525, 675 |
| Orientation | (100) (111) (110) |
| Type | N or P |
Related products
FW-LN-007
FW-LN-007Lithium Niobate (LiNbO3) Crystal, optical grade.
Key Specifications
| Chemical formula | LiNbO3 |
| Transparency (um) | 0.37 – 5 |
| Crystal Structure | Trigonal System |
| Melting Point (℃) | 1260 ℃ |
| Transmittance | >68% at 633nm |
FW-SCS-005
FW-SCS-005Silicon Carbide Substrates.
Key Specifications, 2″
| Chemical formula | SiC |
| Orientation | C-plane (0001) 0+/-0.5o |
| Diameter (mm) | 50.8 |
| Thickness (um) | 330 |
| Primary flat | A-plane |
FW-TEO2-006
FW-TEO2-006Tellurium dioxide (TeO2) crystal with high-quality factor and transparent in the 0.33um to 5um spectral range.
Key Specifications
| Chemical formula | TeO2 |
| Density (g/cm2) | 6 |
| Melting Point (C) | 733 |
| Transparent Wavelength (um) | 0.33 – 5.0 |
| Transmittance @632.8nm | >70% |
FW-YVO4-010
FW-YVO4-010
Yttrium Orthovanadate (YVO4) optical grade crystals
Key Specifications
| Chemical formula | YVO4 |
| Transparency (um) | 0.4 – 5.0 |
| Melting Point (C) | 1150 |
| Density (g/cm3) | 4.22 |
| Moh’s Hardness | 5 |
