FW-SAPP-001

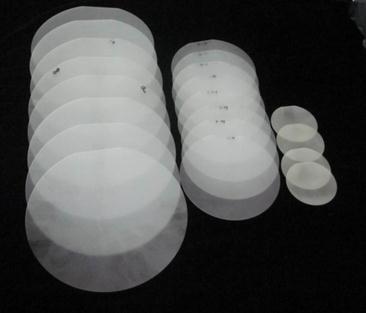

Sapphire (Al2O3) high purity wafers/substrates

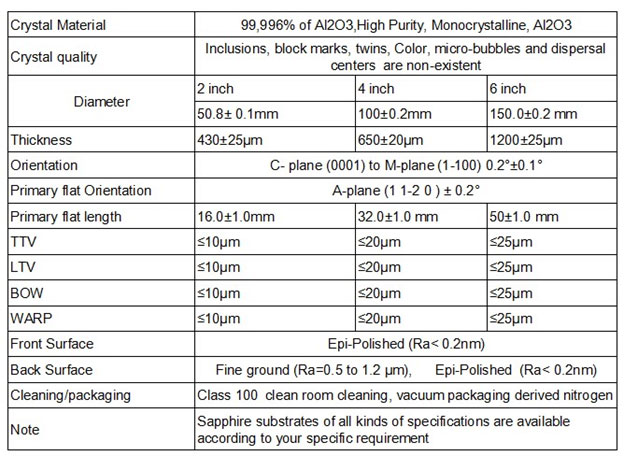

Key Specifications
| Chemical formula | Al2O3 |
| Diameter (inch) | 2, 4, 6 |
| Thickness (um) | 430, 650, 1200 |
| Purity (%) | 99.996 |
| Orientation | C to M |
Related products
FW-KTP-009
FW-KTP-009Potassium Titanyl Phosphate (KTP) crystal, optical grade.
Key Specifications
| Chemical Formula | KTP |
| Transparency (um) | 0.35 – 4.50 |
| Melting Point (C) | 1150 |
| d33 (pm/V) | 10.7 |
| d32 (pm/V) | 2.65 |
FW-SILW-002
FW-SILW-002High purity silicon wafers/substrates
Key Specifications
| Material | Silicon |
| Diameter (inch) | 2, 4, 6 |
| Thickness (um) | 275, 525, 675 |
| Orientation | (100) (111) (110) |
| Type | N or P |

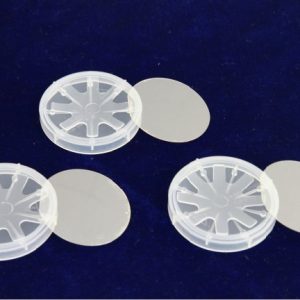

FW-GANT-004
