FW-GANT-004

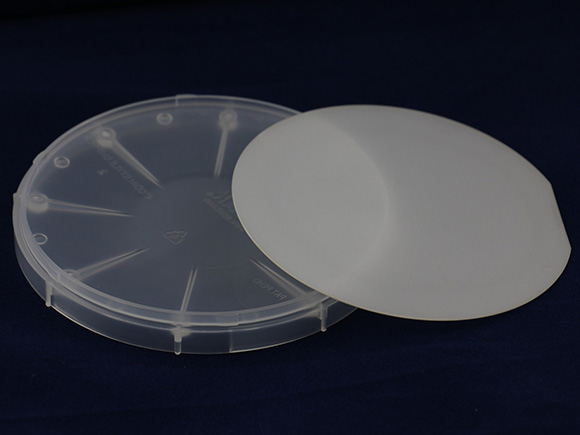

Gallium Nitride (GaN) Templates

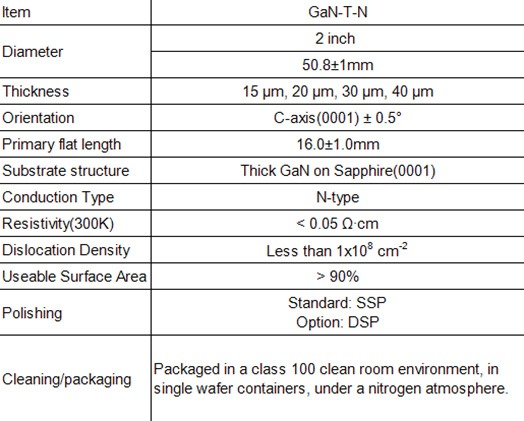

Key Specifications
| Chemical formula | GaN |
| Diameter (inch) | 2″ |
| Thickness (um) | 15, 20, 30, 40 |
| Conduction Type | N-type |
| Orientation | C-axis (0001) |
Related products
FW-GANS-003

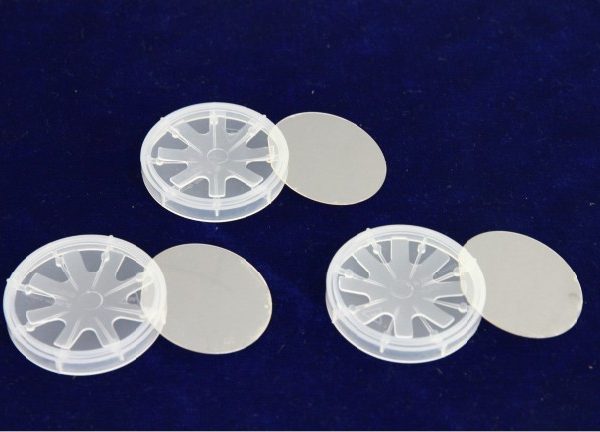

FW-GANS-003Gallium Nitride (GaN) Substrates.
