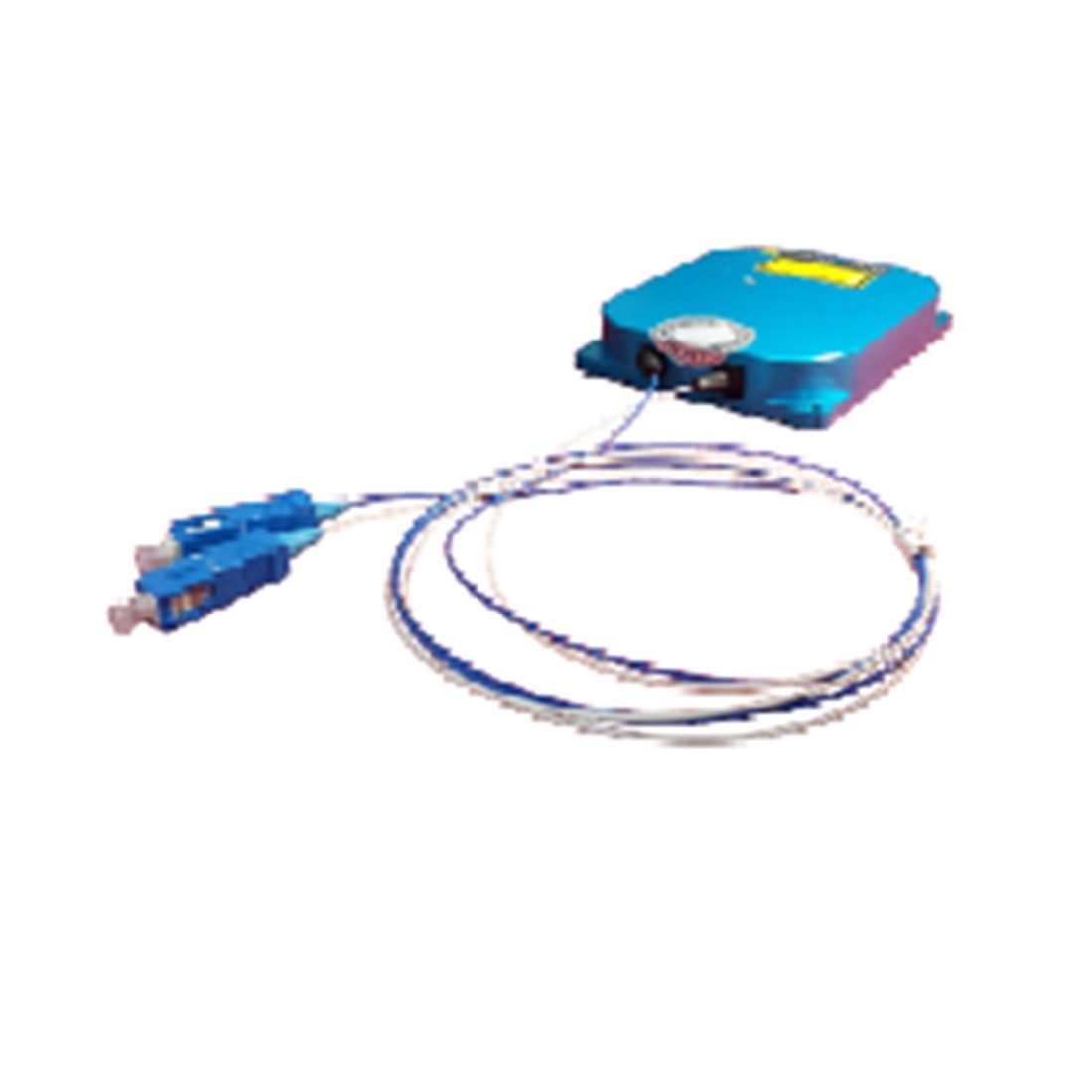

LG-LHA-100CL
C+L-band High Gain Polarization Maintaining Optical Amplifier
Key Specifications
| Output Gain (dB) | ~42 at -45dBm |
| Input Signal Power (dBm) | -45 to -15 |
| Output Fiber | PM |
| Input Signal Type | CW |
| Operating Wavelength (nm) | 1529 to 1603 |

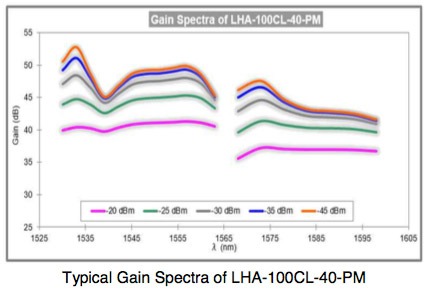

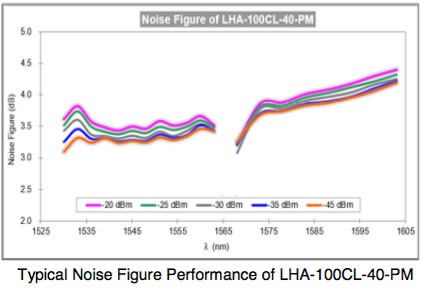

High Output Gain with > 50dB, Low Input Power of -45dBm, Low Noise Figure
Example Applications include:
- Low signal amplification
- Fiber optic components testing
- Optical sensing application
Related products

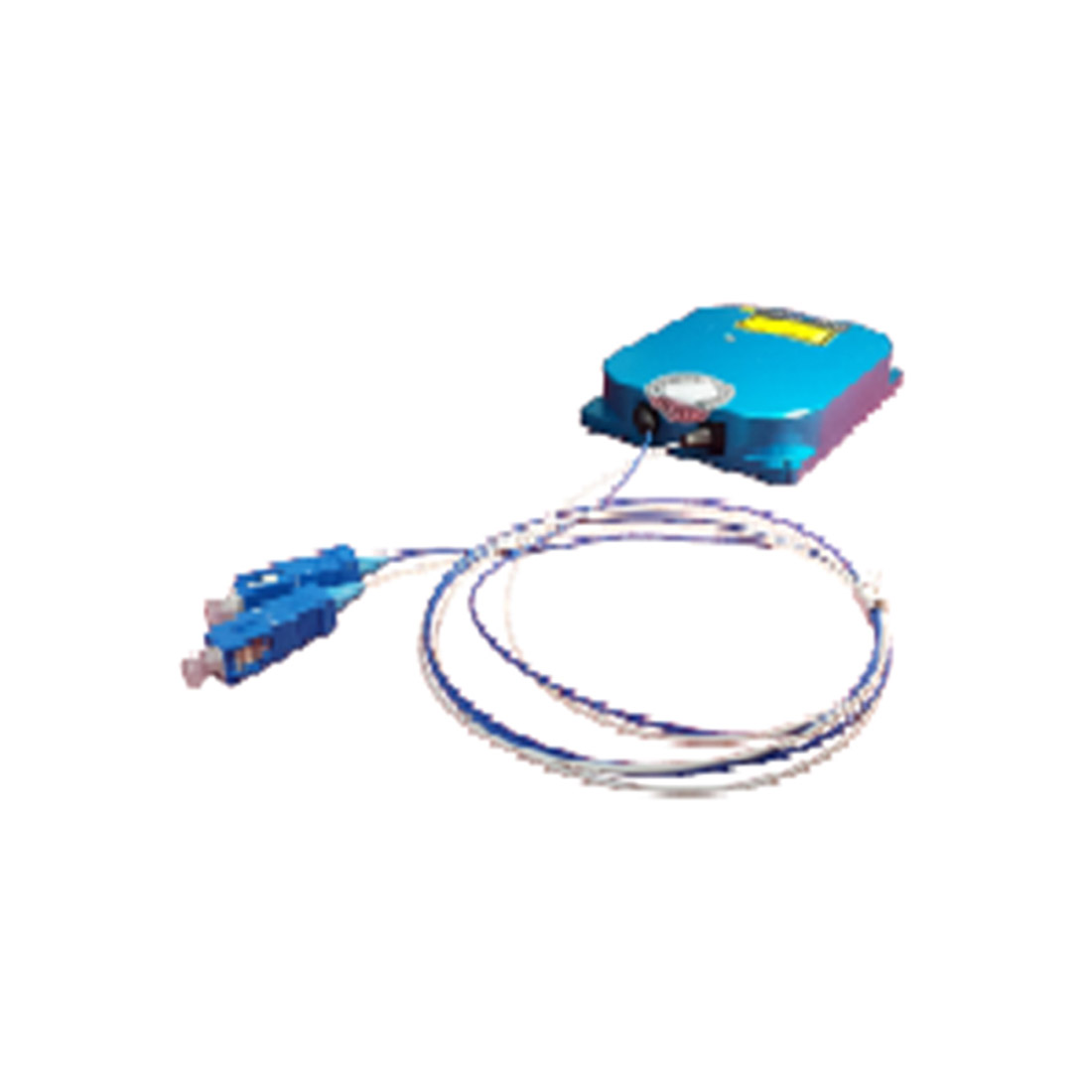

LG-BDA-100C
LG-BDA-100CBi-Directional Erbium-doped Optical Amplifier:
Key Specifications
| Operation | Turn-Key |
| Package | Modular for Integration |
| Control | Remote Feature |
| Power | Consumption Low |
| Operating Band | C-Band |
LG-LHA-100C
LG-LHA-100CC-band High Gain Optical Amplifier
Key Specifications
| Output Gain (dB) | ~42 at -45dBm |
| Input Signal Power (dBm) | -45 to -15 |
| Output Fiber | SM or PM |
| Input Signal Type | CW |
| Operating Wavelength (nm) | 1529 to 1562 |
